Metal-Enclosed Low Voltage Switchgears

Besides fixed type, Horng Yu Electric Co., Ltd.(HYEC) also devotes to manufacturing withdrawable Low Voltage Switchgear and Controlling Device (Below called IS-06 or drawer type) for 3-phase power system in the maximum of rated voltage AC 690V and rated current 6300A function as power transmission and distribution which also features control, monitoring, and protection to circuit.

Drawer type is in conformity of standard IEC 61439. And it has been fully tested by International Laboratory Accreditation Cooperation (ILAC) and Taiwan Electric Research & Testing Center (TERTEC). Withdrawable unit is equipped with comprehensive and reliable device to prevent false operation. Drawer type is the best choice for power supply which provides safer power usage environment. HYEC LV Switchgear is your first choice used in a range of applications like industrial, institutional, critical power, and commercial. If you have any question or need help, please feel free to contact us.

Inquiry
Product Introduction
VOLTAGE CLASS

VOLTAGE CLASS

Up to 690V

CONTINUOUS CURRENT

CONTINUOUS CURRENT

Up to 6300A

RATED SHORT TIME WITHSTAND CURRENT (lk)

RATED SHORT TIME WITHSTAND CURRENT (lk)

Up to 100kA

  • Hand-held and crank handled pull in-out mechanism saves maintenance time.
  • Main circuit and secondary circuit 100% fully withdrawable type. Rapid replacement without power off.
  • Each drawer unit is interlocked and equipped with indication of "Disconnecting", "Testing", and "Connection" position.
  • Spring of main circuit plug is made of steel featuring high mechanical endurance.
  • Copper lamination type main circuit plug with separated spring on each contact makes it better overcurrent endurance.
  • The secondary plug-in socket separates top and down connection terminals.
    Incoming and outgoing do not interfere each other with beautiful wiring arrangement.
  • Spare dashboard openings for different indicating instruments arrangement and inspection.
  • Positioning function on drawers helps zero malfunction after drawn-out replacement.
  1. Name bar
  2. Handle
  3. Openable dashboard
  4. Door lock
  5. Operating switch
  6. Ventilatory louver
NO.DescriptionUnitRated specification
1 Certification ---- CNS 15783-1/2、IEC 61439-1/2
2 Rated Voltage (Ue) V ≦690
3 Rated insulation voltage (Ui) V ≦1000
4 Rated Frequency (Hz) Hz 50/60
5 Rated Lightning Impulse Withstand Voltage (Up) kV ≦12
6 Rated current of horizontal main busbar (InA) A ≦630/800/1000/1250/1600/2000/
2500/3000/3200/4000/5000/6300
7 Rated current of vertical sub busbar (InA) A ≦1800
8 Rated Short Time Current kA ≦100
9 Rated Peak Short Circuit Current kA ≦220
10 Ingress protection rating (IP) Class IP4X
11 Type ---- Fixed/ Withdrawable/ Drawer
12 Types of partition Class Form 2a/2b、3a/3b、4a/4b
13 Types of electrical incomng and outgoing ---- Up/ Down
14 Color (Electrostatic powder coating) ---- RAL 7035 (Standard)
15 Material ---- Galvanized Zinc Alloyed Steel (Front door painting SPHC)
16 Dimension mm Height: 2250
Width: 600/800/1000/1200
Depth: 800/1000/1200
(Depth of front panel 48mm is excluded)
17 Installation type ---- Indoor
18 Altitude m ≦2000

Front View

Side View

1/4 UNIT

DescriptionSpecification
Current capacity of CB Below 63AF
Inlet and outlet contactor 63A
Secondary side accessories (control circuit) AWG #16
CB operation device Rotary switch (Lockable)
Front panel Cannot be opened
Rack-in & out Manual pull out

1/2 UNIT

DescriptionSpecification
Current capacity of CB 63AF-125AF
Inlet and outlet contactor 125A
Secondary side accessories (control circuit) AWG #16/24
CB operation device Rotary switch (Lockable)
Front panel Cannot be opened
Rack-in & out Manual pull out

1 UNIT

DescriptionSpecification
Current capacity of CB 125AF-250AF
Inlet and outlet contactor 250A
Secondary side accessories (control circuit) AWG #10/16/22/32
CB operation device Rotary switch (Lockable)
Front panel Openable
Rack-in & out Manual pull out

2 UNIT

DescriptionSpecification
Current capacity of CB 400AF
Inlet and outlet contactor 400A
Secondary side accessories (control circuit) AWG #10/16/22/32
CB operation device Rotary switch (Lockable)
Front panel Openable
Rack-in & out Crank handle

3 UNIT

DescriptionSpecification
Current capacity of CB 630AF
Inlet and outlet contactor 630A
Secondary side accessories (control circuit) AWG #10/16/22/32
CB operation device Rotary switch (Lockable)
Front panel Openable
Rack-in & out Crank handle

ACB PANEL

Dimension unit: mm

Front view of 1 ACB unit

Front view of 2 ACB units

Front view of 3 ACB units

ACB PANEL
Standard IEC 61439 / CNS 15783
Quantity of ACB 3 2 1 3 2 1 3 2 1 2 1
Width of ACB (mm) 600W 600W 600W 800W 800W 800W 1000W 1000W 1000W 1200W 1200W
4000AF~6300AF
High breaking capacity		 3P --- --- --- --- --- --- ---
4P --- --- --- --- --- --- --- --- ---
3200A~4000AF 3P --- --- --- --- --- ---
4P --- --- --- --- --- ---
800AF~2000AF 3P --- --- --- --- ---
4P --- --- --- --- ---
1600AF below (compact type) 3P --- --- ---
4P --- --- ---
Dimension of switchgear Width (W) 600mm, 800mm, 1000mm, 1200mm
Height (H) 2250mm (Excluding base)
Depth (D) 848mm, 1048mm, 1248mm (Non-standard)

Remark：

：Available

　　

---：Unavailable

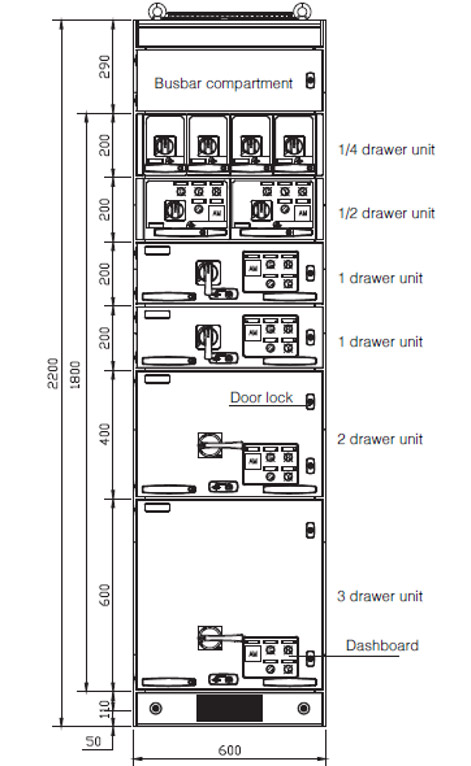

MCCB PANEL

Dimension unit: mm

Back outgoing type in width of 600mm cabinet

Lateral outgoing type in width of 800mm cabinet

Drawer unit of MCCB
Standard IEC 61439 / CNS 15783
Type (Drawer Unit) 1/4 1/2 1 2 3
Dimension of Drawer unit (mm) 150Wx200H 300Wx200H 600Wx200H 600Wx400H 600Wx600H

MCCB

 63AF
(75mmWx130mmH below)		     --- --- ---
125AF ---     --- ---
250AF --- ---     ---
400AF --- --- ---
630AF --- --- ---
Full voltage starting 3ψ 220V 11kW below ---
3ψ 380V 18.5kW below ---
3ψ 380V 37kW below --- ---
Star delta starting(Y-△) 3ψ 220V 18.5kW below --- ---
3ψ 220V 45kW below --- --- ---
3ψ 380V 30kW below --- ---
3ψ 380V 55kW below --- --- ---
3ψ 480V 37kW below --- ---
3ψ 480V 75kW be --- --- ---
Dimension of switchgear Width (W) Rear-outgoing 600mm
Lateral-outgoing 800mm
Height (H) 2250mm
Depth (D) 848mm, 1048mm, 1248mm (Non-standard)
Quantity limitation of drawer 36 sets

Note:

  1. 1/4-unit MCCB type cannot be installed with CT and meter.
  2. Starter type can be installed with a 3kVA CT and a 48*48mm meter (CL:1.5*1).
  3. Special arrangement is recommended if there are requirements on accessories installment.
  4. Any requirement on starters please contact Horng Yu.
  5. Power supply can be sourced from the main switchgear or additional supplier.

Remark：

：Available

---：Unavailable

：Special arrangement
